UC3400

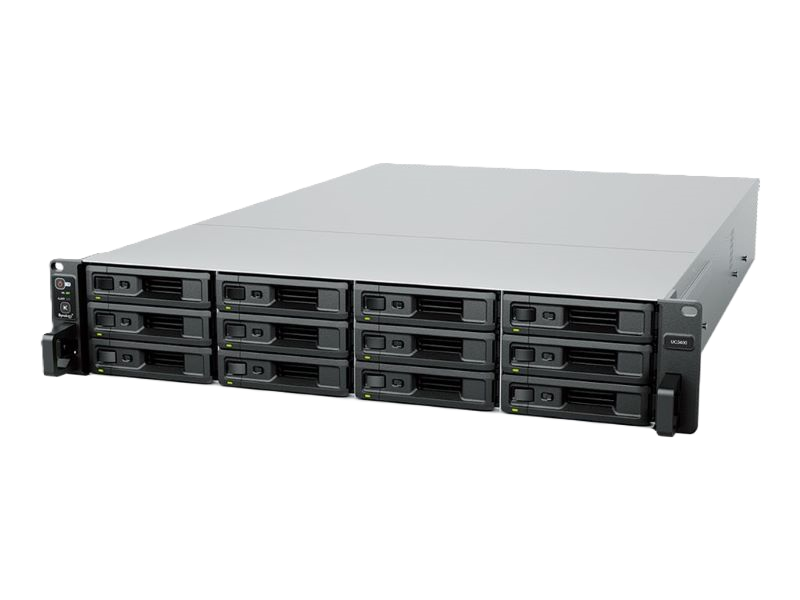

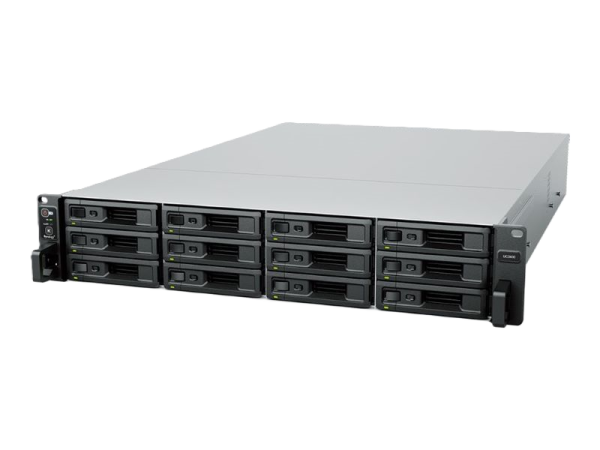

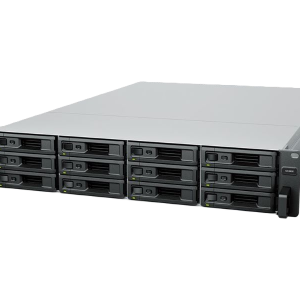

Synology Unified Controller UC3400 Intel Xeon D-1541(Cltr -2)8GB Rackmount 2U 12 bays

Categories: 12bay diskless DS& RS, Synology

Add to wishlist

Description
Reviews (0)
Q & A

Description

UC3400

Hardware Specifications
Controller	Number of Controller Module	2
CPU	CPU Model	Intel Xeon D-1541
	CPU Quantity	1 (per controller)
	CPU Core	8
	CPU Architecture	64-bit
	CPU Frequency	2.1 (base) / 2.7 (turbo) GHz
	Hardware Encryption Engine
Memory	System Memory	8 GB DDR4 ECC UDIMM (per controller)
	Memory Module Pre-installed	8 GB (8 GB x 1) (per controller)
	Total Memory Slots	4 (per controller)
	Maximum Memory Capacity	64 GB (16 GB x 4) (per controller)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage	Drive Bays	12
	Maximum Drive Bays with Expansion Unit	36 (RXD1219sas x 2)
	Compatible Drive Type	2.5” dual-port SAS SSD 3.5” dual-port SAS HDD
	Hot Swappable Drive*
	Notes	Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability. “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports	RJ-45 1GbE LAN Port	2 (with Link Aggregation / Failover support) (per controller)
	RJ-45 10GbE LAN Port	1 (per controller)
PCIe	PCIe Expansion	1 x Gen3 x8 slot (x8 link) (per controller)
	Add-In-Card Support	10GbE NIC 25GbE NIC FC HBA
System File	Internal Drives	Btrfs
Appearance	Size (Height x Width x Depth)	88 mm x 430.5 mm x 692 mm
	Size (Height x Width x Depth) (with server ears)	88 mm x 482 mm x 724 mm
	Weight	19.7 kg
	Rack Installation Support*	4-post 19″ rack (Synology Rail Kit – RKS-02)
	Notes	The rail kit is sold separately
Others	System Fan	60 mm x 60 mm x 2 (per controller)
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan
	Power Recovery
	Noise Level*	51.3 dB(A)
	Power Supply Unit / Adapter	500W
	Redundant Power Supply
	AC Input Power Voltage	100 V to 240 V AC
	Power Frequency	50/60Hz, Single Phase
	Power Consumption	239.25 W (Access)
	British Thermal Unit	816.35 BTU/hr (Access)
	Notes	Noise Level Testing Environment: Fully loaded with Synology HAS5300-8T hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% Power consumption is measured when it is fully loaded with Synology 12TB HAS5300-12T hard drive(s).
Temperature	Operating Temperature	0°C to 35°C (32°F to 95°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	CE FCC BSMI VCCI RCM UKCA KC EAC
Warranty	5 Years
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1
Optional Accessories	DDR4 ECC UDIMM: D4EC-2666-8G/D4EC-2666-16G Expansion Units: RXD1219sas Enterprise Series 3.5″ SAS HDD: HAS5300 Series 25GbE Network Interface Card: E25G30-F2 10GbE Network Interface Card: E10G30-F2/E10G30-T2/E10G18-T1 Rail Kit Sliding: RKS-02
	Notes	All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
