Description

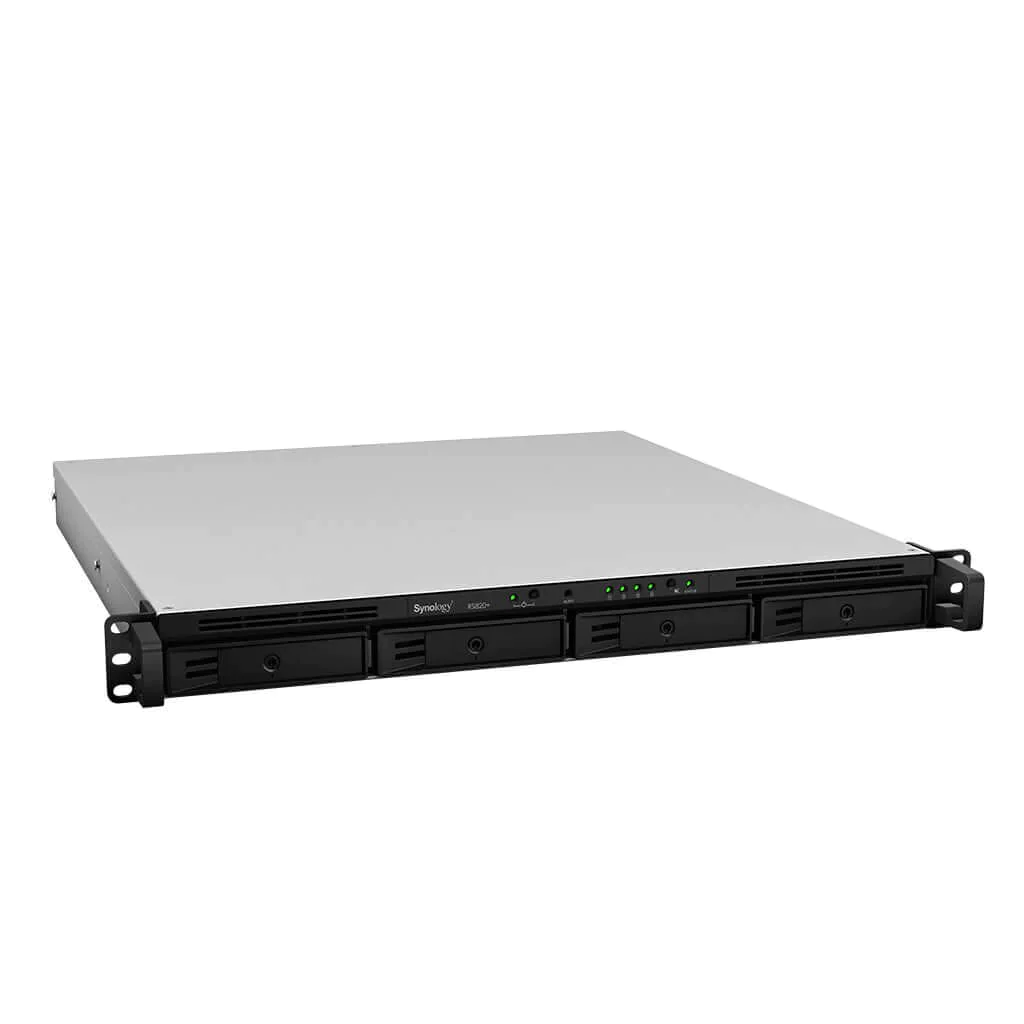

Synology RackStation RS820RP+

Plus Series 4-bay Rackmount NAS for Offices and IT Pros
Diskless 0 TB. Expandable further with Expansion
Supports RAID SHR, 0,1,5,6,10

—

RackStation RS820+/RS820RP+

Ideal 1U rackmount NAS for high-performance data management

High-performance storage solution with on-demand scalability

Synology RackStation Synology RackStation RS820RP+ is designed for businesses pursuing an effective and centralized data management. It comes with four drive trays and 1GbE LAN ports and supports an optional 10GbE network or M.2 SSD adapter card, providing fast data transmission and reducing IO latency.

CPU

4-core 2.1 GHz

Memory

2GB DDR4, up to 18GB

High Performance

Over 1,621 MB/s sequential reading

Scalability

Up to 8 drives with RX418

Built for service reliability

Synology RackStation RS820RP+ comes with four 1GbE LAN ports to support Link Aggregation and failover. Synology High Availability provides a reliable active/passive server cluster, maximizing service uptime. Furthermore, RS820RP+ is equipped with redundant power supplies to achieve service continuity.

Next-generation file system for better data protection

The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.

Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders

Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots

File or folder level data restoration makes data recovery fast and flexible

Automatic file self-healing detects and recovers corrupted files without user intervention

Real-time collaboration on your private cloud

Office is a collaboration package combining the convenience and usability of public clouds with the data privacy and security guaranteed by private clouds. It allows you to work seamlessly together on documents and spreadsheets in a protected environment.

Engineered for reliability, backed by Synology

Synology RackStation RS820RP+ is designed to reliably store your data and is backed by Synology’s three-year hardware warranty. An optional two-year extended warranty is available in select regions for up to five years of coverage.

Powered by Synology DSM

Surveillance Station

Complete surveillance solution for recording, monitoring, and management.

Synology Office

Collaborate on documents, spreadsheets, and slides in real time to boost team productivity.

Synology High Availability

Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.

DSM UI

Award-winning operating system with an intuitive user interface and powerful capabilities.

Security

Comprehensive built-in security tools are constantly updated to protect your devices against evolving threats.

All-in-one server

Save additional investment by integrating various network services, web/mail services, management applications into your NAS.

Power Indicator
Power Button
Alert indicator
Drive status indicator
Beep off button
Status Indicator
Drive Tray

Console port
PCIe expansion slot
Power port
Fan
1GbE RJ-45 port
Reset button
USB 3.0 port
eSATA port

CPU	CPU Model	Intel Atom C3538
	CPU Architecture	64-bit
	CPU Frequency	Quad Core 2.1 GHz
	Hardware Encryption Engine (AES-NI)
Memory	System Memory	2 GB DDR4
	Total Memory Slots	1
	Memory Expandable up to	18 GB (2GB + 16 GB)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. This model does not support the ECC feature, regardless of whether the expansion memory is ECC or non-ECC.
Storage	Drive Bays	4
	Maximum Drive Bays with Expansion Unit	8
	Compatible Drive Type*(See all supported drives)	3.5″ SATA HDD 2.5″ SATA HDD 2.5″ SATA SSD
	Maximum Internal Raw Capacity	64 TB (16 TB drive x 4) (Capacity may vary by RAID types)
	Maximum Raw Capacity with Expansion Units	128 TB (64 TB + 16 TB drive x 4) (Capacity may vary by RAID types)
	Maximum Single Volume Size*	108 TB
	Hot Swappable Drive
	Notes	“Compatible drive type” indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit.(Learn more) Each internal volume (may consist of multiple drives) is expandable up to 108TB.
External Ports	RJ-45 1GbE LAN Port	4 (with Link Aggregation / Failover support)
	USB 3.0 Port	2
	eSATA Port	1
PCIe	PCIe Expansion	1 x Gen3 x8 slot (black, x4 link)
	Add-In-Card Support	PCIe Network Interface Card(Learn more) M2D18- Dual M.2 SATA/NVMe SSD adapter card for SSD cache
File System	Internal Drives	Btrfs EXT4
	External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT*
	Notes	exFAT Access is purchased separately in Package Center.
Appearance	Form Factor (RU)	1U
	Size (Height x Width x Depth)	44 mm x 480 mm x 492.6 mm 44 mm x 480 mm x 518.6 mm (for RP model)
	Weight	6.4 kg 7.96 kg (for RP model)
	Rack Installation Support*	4-post 19″ rack (Synology Rail Kit -RKM114/RKS1317)
	Notes	The rail kit is sold separately
Others	System Fan	40 mm x 40 mm x 3 pcs 40 mm x 40 mm x 2 pcs (for RP model)
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Power Recovery
	Noise Level*	27 dB(A) 39.9 dB(A) (for RP model)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	150 W
	Redundant Power Supply	yes (for RP model)
	AC Input Power Voltage	100 V to 240 V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption*	37.94 W (Access) 20.96 W (HDD Hibernation) 38.88 W (Access) (for RP model) 22.17 W (HDD Hibernation) (for RP model)
	British Thermal Unit	129.54 BTU/hr (Access) 71.57 BTU/hr (HDD Hibernation) 132.75 BTU/hr (Access) (for RP model) 75.70 BTU/hr (HDD Hibernation) (for RP model)
	Notes	Power consumption is measured when it’s fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0C to 35C (32F to 95F)
	Storage Temperature	-20C to 60C (-5F to 140F)
	Relative Humidity	5% to 95% RH
Certification	EAC VCCI CCC RCM KC FCC CE BSMI
Warranty	3-year hardware warranty, extendable to 5-year coverage -EW202
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt.(Learn more)
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 AC Power Cord X 2 (for RP model) Quick Installation Guide X 1
Optional Accessories	D4NESO-2666-4G DDR4 non-ECC SO-DIMM* D4ECSO-2666-16G DDR4 ECC SO-DIMM* Surveillance Device License Pack Expansion Unit:RX418X 1 Synology Ethernet AdapterE10G17-F2 Synology Ethernet AdapterE10G18-T1 Synology Ethernet AdapterE10G18-T2 SynologyM2D18M.2 SSD adapter card Synology Rail Kit Mounted -RKM114 Synology Rail Kit Sliding -RKS1317 VS360HD VS960HD
	Notes	This model does not support the ECC feature, regardless of whether the expansion memory is ECC or non-ECC.
