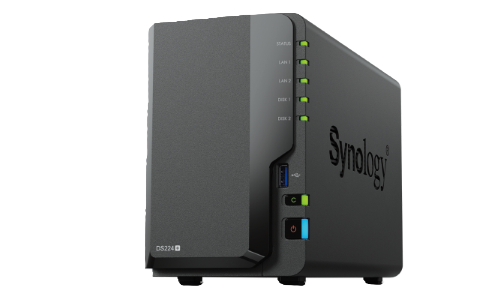

Synology DiskStation DS224+

Synology DiskStation 224+ Intel Celeron J4125 2GB 2bay

Categories: , ,
Add to wishlist

Description

Synology DiskStation DS224+

 Specifications

CPU
CPU ModelIntel Celeron J4125
CPU Quantity1
CPU Core4
CPU Architecture64-bit
CPU Frequency2.0 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine
Memory
System Memory2 GB DDR4 non-ECC
Total Memory Slots1
Maximum Memory Capacity6 GB (2 GB + 4 GB)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage
Drive Bays2
Drive Type
  • 3.5″ SATA HDD
  • 2.5″ SATA SSD
Hot Swappable Drive*
External Ports
RJ-45 1GbE LAN Port2
USB 3.2 Gen 1 Port2
USB Copy
NotesMTU value of 1GbE LAN port has a limit of 1500.
Appearance
Size (Height x Width x Depth)165 mm x 108 mm x 232.2 mm
Weight1.30 kg
Others
System Fan92 mm x 92 mm x 1 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level*22 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter60 watts
AC Input Power Voltage100V to 240V AC
Power Frequency50/60 Hz, Single Phase
Power Consumption*14.69 watts (Access)
4.41 watts (HDD Hibernation)
British Thermal Unit50.09 BTU/hr (Access)
15.04 BTU/hr (HDD Hibernation)
Notes
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Operating Temperature0°C to 40°C (32°F to 104°F)
Storage Temperature-20°C to 60°C (-5°F to 140°F)
Relative Humidity5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • CCC
  • KC
  • BIS
Warranty
2-year hardware warranty, extendable to 4 years with Extended Warranty Plus
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt.
Environment
RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
Optional Accessories
  • DDR4 non-ECC SODIMM: D4NESO-2666-4G
  • Plus Series 3.5″ SATA HDD: HAT3300 Series
NotesAll memory modules will operate at the maximum frequency specified by the CPU manufacturer.
