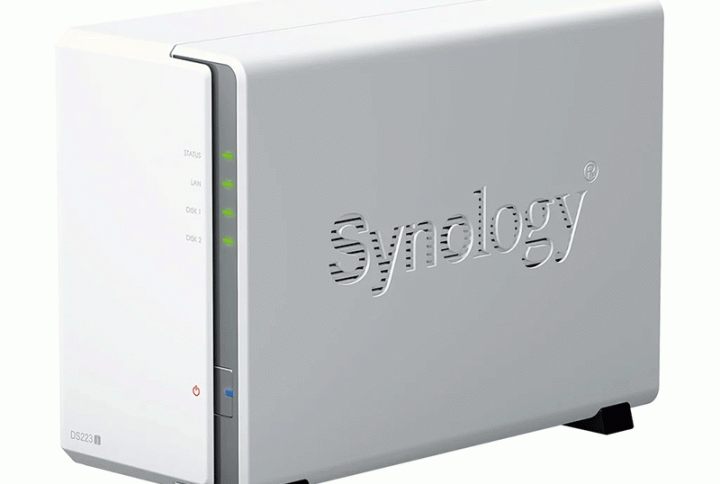

Synology DiskStation DS223j
HAT5310-18T

Synology DiskStation DS223

Synology DiskStation 223 2bay Realtek RTD1619B 4core 1.7Ghz 2GB

Categories: , ,
Add to wishlist

Description

Synology DiskStation DS223

Hardware Specifications
CPU
CPU ModelRealtek RTD1619B
CPU Quantity1
CPU Core4
CPU Architecture64-bit
CPU Frequency1.7 GHz
Hardware Encryption Engine
Memory
System Memory2 GB DDR4 non-ECC
NotesSynology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage
Drive Bays2
Drive Type
  • 3.5″ SATA HDD
  • 2.5″ SATA SSD
Hot Swappable Drive*
External Ports
RJ-45 1GbE LAN Port1
USB 3.2 Gen 1 Port3
USB Copy
NotesThis device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
Appearance
Size (Height x Width x Depth)165 mm x 108 mm x 232.7 mm
Weight1.28 kg
Others
System Fan92 mm x 92 mm x 1 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level*14.6 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter60 watts
AC Input Power Voltage100V to 240V AC
Power Frequency50/60 Hz, Single Phase
Power Consumption*17.343 watts (Access)
4.08 watts (HDD Hibernation)
British Thermal Unit59.19 BTU/hr (Access)
13.92 BTU/hr (HDD Hibernation)
Notes
  • Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.
Temperature
Operating Temperature0°C to 40°C (32°F to 104°F)
Storage Temperature-20°C to 60°C (-5°F to 140°F)
Relative Humidity5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • BIS
Warranty
2-year hardware warranty, extendable to 4 years with Extended warranty Plus
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt.
Environment
RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 1
  • Quick Installation Guide X 1
Optional Accessories
  • Enterprise Series 3.5″ SATA HDD: HAT5300 Series
  • Plus Series 3.5″ SATA HDD: HAT3300 Series
  • Enterprise Series 2.5″ SATA SSD: SAT5200 Series

Synology DiskStation DS223 2bay
