SA3610
people are viewing this right now

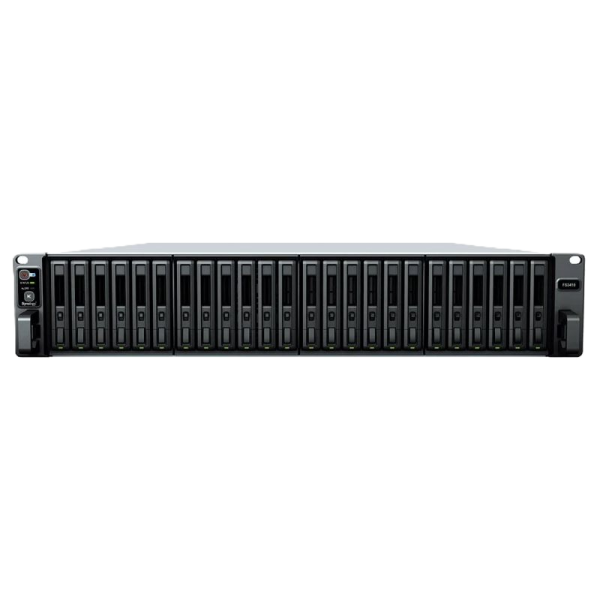

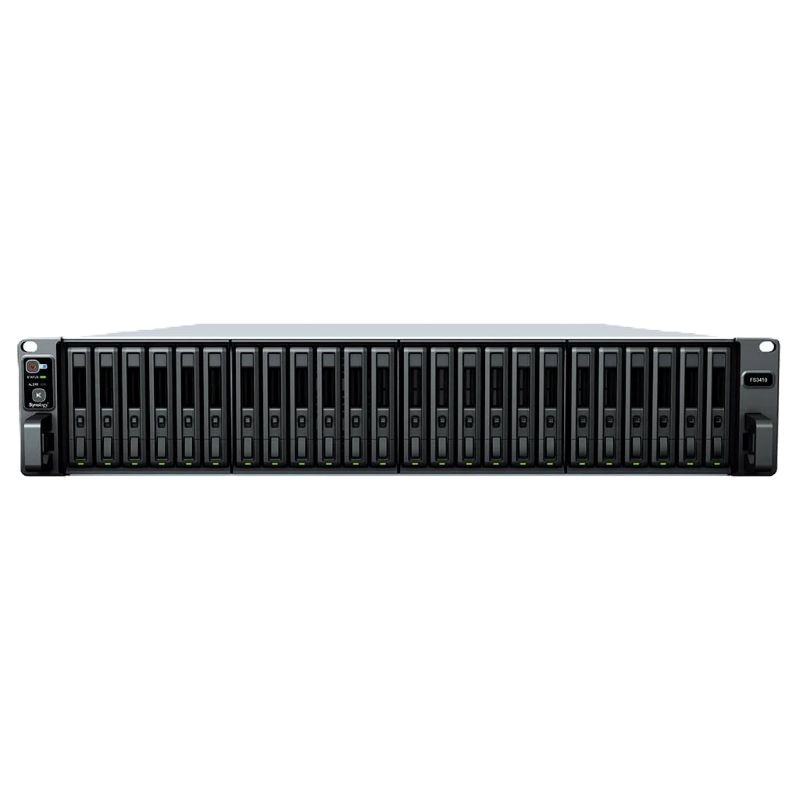

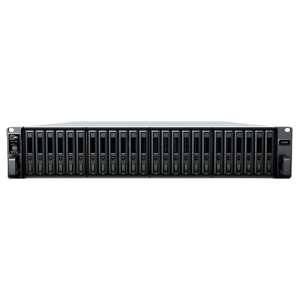

Synology Rackmount Scalability 3610 Intel Xeon D-1567 16GB 2U 12 bays
Guaranteed Safe Checkout
- Free worldwide shipping on all orders over $100
- Delivers in: 3-7 Working Days Shipping & Return
SA3610
Specifications |
SA3610
|
SA3410
|
|
|---|---|---|---|
| CPU | CPU Model | Intel Xeon D-1567 | Intel Xeon D-1541 |
| CPU Quantity | 1 | 1 | |
| CPU Core | 12 | 8 | |
| CPU Architecture | 64-bit | 64-bit | |
| CPU Frequency | 2.1 (base) / 2.7 (turbo) GHz | 2.1 (base) / 2.7 (turbo) GHz | |
| Hardware Encryption Engine | |||
| Memory | System Memory | 16 GB DDR4 ECC RDIMM | 16 GB DDR4 ECC RDIMM |
| Memory Module Pre-installed | 16 GB (16 GB x 1) | 16 GB (16 GB x 1) | |
| Total Memory Slots | 4 | 4 | |
| Maximum Memory Capacity | 128 GB (32 GB x 4) | 128 GB (32 GB x 4) | |
| Notes |
|
||
| Storage | Drive Bays | 12 | 12 |
| Maximum Drive Bays with Expansion Unit | 96 (RX1222sas x 7) | 96 (RX1222sas x 7) | |
| Drive Type |
|
|
|
| Hot Swappable Drive* | |||
| Notes | Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability. | ||
| External Ports | RJ-45 1GbE LAN Port | 4 | 4 |
| RJ-45 10GbE LAN Port | 2 | 2 | |
| Out-of-Band Management LAN Port | 1 | 1 | |
| Max. Number of LAN Ports | 15 | 15 | |
| USB 3.2 Gen 1 Port | 2 | 2 | |
| Expansion Port | 1 | 1 | |
| Expansion Port Type | Mini-SAS HD | Mini-SAS HD | |
| Notes | This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. | ||
| PCIe | PCIe Expansion | 2 x Gen3 x8 slots (x8 link) | 2 x Gen3 x8 slots (x8 link) |
| Appearance | Form Factor (RU) | 2U | 2U |
| Size (Height x Width x Depth) | 88 mm x 482 mm x 724 mm | 88 mm x 482 mm x 724 mm | |
| Weight | 14.5 kg | 14.5 kg | |
| Rack Installation Support* | 4-post 19″ rack (Synology Rail Kit – RKS-02) | 4-post 19″ rack (Synology Rail Kit – RKS-02) | |
| Notes | The rail kit is sold separately | ||
| Others | System Fan | 80 mm x 80 mm x 4 pcs | 80 mm x 80 mm x 4 pcs |
| Fan Speed Mode |
|
|
|
| Easy Replacement System Fan | |||
| Power Recovery | |||
| Noise Level* | 49.8 dB(A) | 49.8 dB(A) | |
| Scheduled Power On / Off | |||
| Wake on LAN / WAN | |||
| Power Supply Unit / Adapter | 550 watts | 550 watts | |
| Redundant Power Supply | |||
| AC Input Power Voltage | 100V to 240V AC | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | 50/60 Hz, Single Phase | |
| Power Consumption* | 137.54 watts (Access) 58.23 watts (HDD Hibernation) |
136.15 watts (Access) 58.48 watts (HDD Hibernation) |
|
| British Thermal Unit | 469.30 BTU/hr (Access) 198.68 BTU/hr (HDD Hibernation) |
464.56 BTU/hr (Access) 199.54 BTU/hr (HDD Hibernation) |
|
| Notes |
|
||
| Temperature | Operating Temperature | 0°C to 35°C (32°F to 95°F) | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | -20°C to 60°C (-5°F to 140°F) | |
| Operating Humidity | 8% to 80% RH | 8% to 80% RH | |
| Storage Humidity | 5% to 95% RH | 5% to 95% RH | |
| Certification |
|
|
|
| Warranty | 5 Years | 5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. | ||
| Environment | RoHS Compliant | RoHS Compliant | |
| Packaging Content |
|
|
|
| Optional Accessories |
|
|
|
| Notes | For multi-module memory configurations, all modules must be identical and share the same model number. | ||
