SA3400D

people are viewing this right now

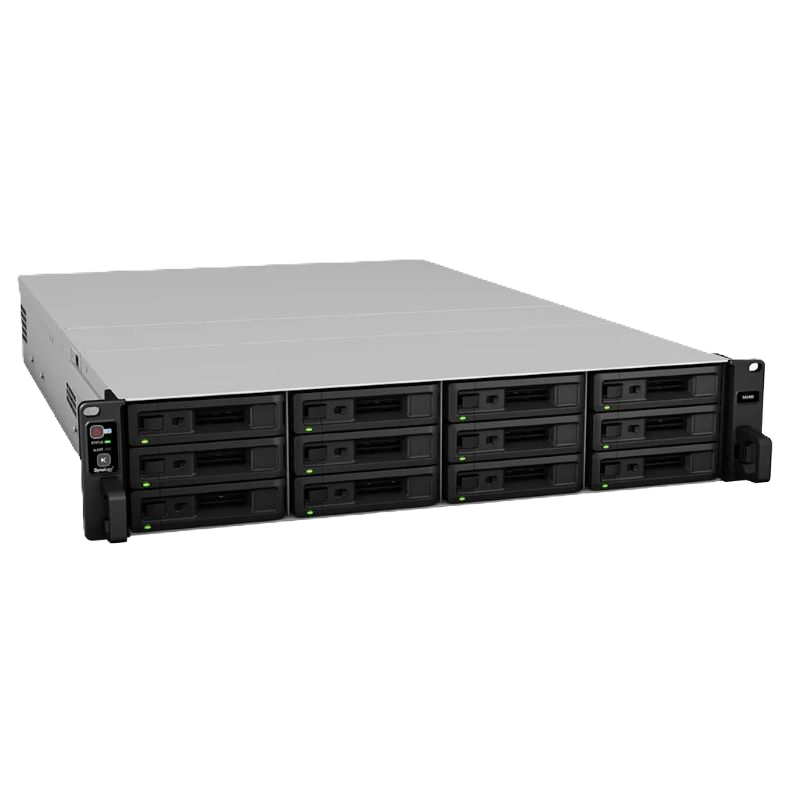

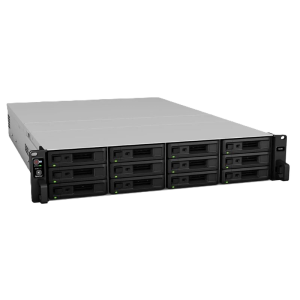

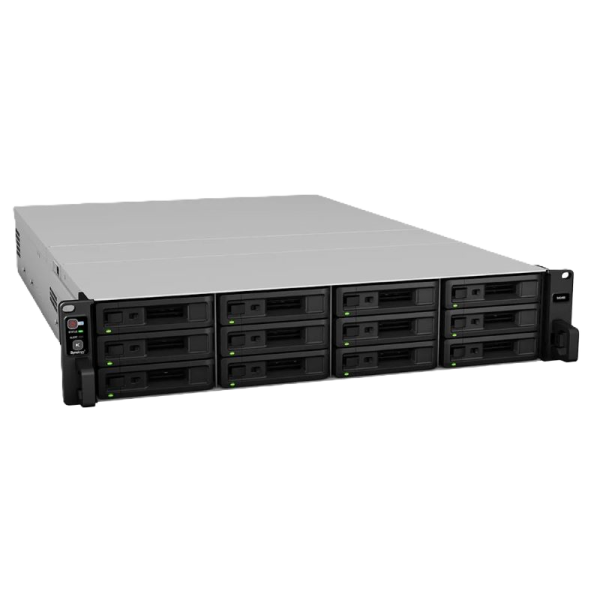

Synology Dual Controller Architecture-Intel Xeon D-1541 8GB , Rackmount 2U 12 bays

Image Safe Checkout

Guaranteed Safe Checkout

Free worldwide shipping on all orders over $100
Delivers in: 3-7 Working Days Shipping & Return

Categories: 12bay diskless DS& RS, Synology

Description
Reviews (0)

Description

SA3400D

Hardware Specifications
Controller	Number of Controller Module	2
CPU	CPU Model	Intel Xeon D-1541
	CPU Quantity	1 (per controller)
	CPU Core	8
	CPU Architecture	64-bit
	CPU Frequency	2.1 (base) / 2.7 (turbo) GHz
	Hardware Encryption Engine
Memory	System Memory	8 GB DDR4 ECC UDIMM (per controller)
	Memory Module Pre-installed	8 GB (8 GB x 1) (per controller)
	Total Memory Slots	4 (per controller)
	Maximum Memory Capacity	64 GB (16 GB x 4) (per controller)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number.
Storage	Drive Bays	12
	Maximum Drive Bays with Expansion Unit	36 (RXD1219sas x 2)
	Drive Type	2.5″ dual-port SAS SSD 3.5″ dual-port SAS HDD
	Hot Swappable Drive*
	Notes	Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
External Ports	RJ-45 1GbE LAN Port	2 (per controller)
	RJ-45 10GbE LAN Port	1 (per controller)
	Expansion Port	1 (per controller)
	Expansion Port Type	Mini-SAS HD
	Notes	This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
PCIe	PCIe Expansion	1 x Gen3 x8 slot (x8 link) (per controller)
Appearance	Form Factor (RU)	2U
	Size (Height x Width x Depth)	88 mm x 482 mm x 724 mm
	Weight	19.7 kg
	Rack Installation Support*	4-post 19″ rack (Synology Rail Kit – RKS-02)
	Notes	The rail kit is sold separately
Others	System Fan	60 mm x 60 mm x 2 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan
	Power Recovery
	Noise Level*	51.3 dB(A)
	Power Supply Unit / Adapter	500 watts
	Redundant Power Supply
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption*	257.78 watts (Access)
	British Thermal Unit	879.58 BTU/hr (Access)
	Notes	Power consumption is measured when it is fully loaded with Synology 12TB HAS5300-12T hard drive(s). Noise Level Testing Environment: Fully loaded with Synology HAS5300-8T hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0°C to 35°C (32°F to 95°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Operating Humidity	8% to 80% RH
	Storage Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC
Warranty	5 Years
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt.
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1
Optional Accessories	DDR4 ECC UDIMM:D4EC-2666-8G/D4EC-2666-16G Expansion Units: RXD1219sas Enterprise Series 3.5″ SAS HDD: HAS5300 Series 25GbE Network Interface Card: E25G30-F2 10GbE Network Interface Card:E10G30-F2/E10G30-T2/E10G18-T1 Rail Kit Sliding: RKS-02
	Notes	For multi-module memory configurations, all modules must be identical and share the same model number.
