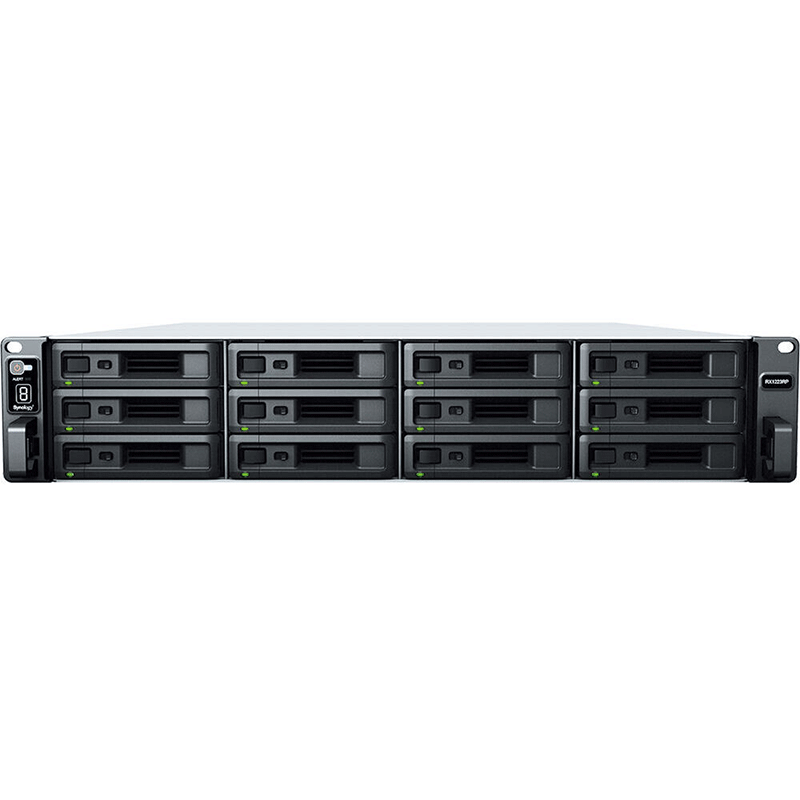

RX1223RP - Image 1
RX1217
RX1217sas

RX1223RP

Expansion unit Rackmount 12 bays (SATA drives only)

Categories: ,
Add to wishlist

Description

RX1223RP

Specifications

Applied Models
Supports creating volumes across different units
  • SA series:SA6400
  • 23 series:RS2423RP+, RS2423+
NotesTo have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.
Storage
Drive Bays12
Drive Type
  • 3.5″ SATA HDD
  • 2.5″ SATA SSD
Hot Swappable Drive*
RAID Management through Synology DSM
Notes
  • Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
  • “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
Expansion Port1
Appearance
Size (Height x Width x Depth)88 mm x 430.5 mm x 692 mm
Size (Height x Width x Depth) (with server ears)88 mm x 482 mm x 724 mm
Weight13.9 kg
Rack Installation Support*4-post 19″ rack (Synology Rail Kit – RKS-02)
NotesThe rail kit is sold separately
Power
Power RecoverySynchronized with the Synology RackStation
Power Supply Unit / Adapter550 W
AC Input Power Voltage100V to 240V AC
Power Frequency50/60 Hz, Single Phase
Power Consumption*93.59 W (Access)
30.73 W (HDD Hibernation)
British Thermal Unit319.34 BTU/hr (Access)
104.86 BTU/hr (HDD Hibernation)
Redundant Power Supply
Temperature
Operating Temperature0°C to 35°C (32°F to 95°F)
Storage Temperature-20°C to 60°C (-5°F to 140°F)
Operating Humidity8% to 80% RH
Storage Humidity5% to 95% RH
Others
System Fan80 mm x 80 mm x 4 pcs
Easy Replacement System Fan
Noise Level*54.3 dB(A)
NotesNoise Level Testing Environment: Fully loaded with Synology SAT5200-480G SSD in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Certification
  • UL
  • FCC
  • CE
  • BSMI
  • UKCA
  • EAC
  • VCCI
  • RCM
  • KC
  • BIS
Warranty
5 Years
NotesThe warranty period starts from the purchase date as stated on your purchase receipt.
Environment & Packaging
Environment
RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Expansion Cable: MiniSAS-HD X 1
  • Quick Installation Guide X 1
Optional Accessories
  • Enterprise Series 3.5″ SATA HDD: HAT5300 Series
  • Plus Series 3.5″ SATA HDD: HAT3300 Series
  • Enterprise Series 2.5″ SATA SSD: SAT5200 Series
  • Rail Kit Sliding: RKS-02
