RX1222sas - Image 1
RX1217RP

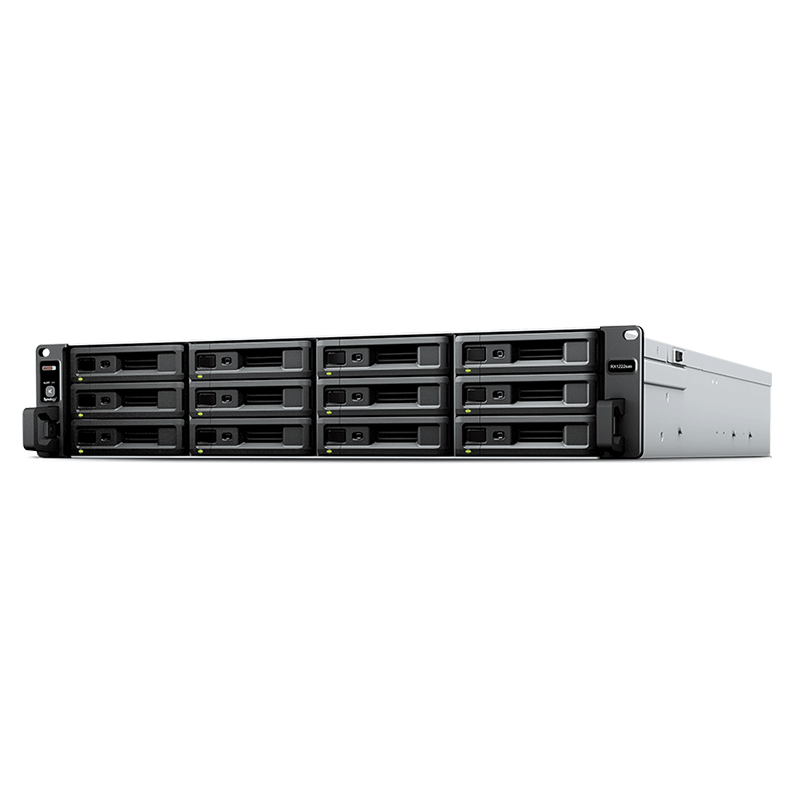

RX1222sas

Expansion unit Rackmount 12 bays (both SAS/SATA drives)

Categories: ,
Add to wishlist

Description

RX1222sas

Specifications

Applied Models
Supports creating volumes across different units
  • FS series:FS6400, FS3600, FS3400
  • SA series:SA3610, SA3600, SA3410, SA3400
Notes
  • To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.
  • DSM version requirement: 6.2.4-25556 Update 3, 7.0.1-42218 Update 2 or later versions.
Storage
Drive Bays12
Drive Type
  • 3.5″ SAS HDD
  • 2.5″ SAS SSD
  • 3.5″ SATA HDD
  • 2.5″ SATA SSD
Hot Swappable Drive*
RAID Management through Synology DSM
Notes
  • Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
  • “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
SAS IN-port1
SAS OUT-port1
Appearance
Size (Height x Width x Depth)88 mm x 430.5 mm x 692 mm
Size (Height x Width x Depth) (with server ears)88 mm x 482 mm x 724 mm
Weight13.5 kg
Rack Installation Support*4-post 19″ rack (Synology Rail Kit – RKS-02)
NotesThe rail kit is sold separately
Power
Power Supply Unit / Adapter500 W
AC Input Power Voltage100V to 240V AC
Power Frequency50/60 Hz, Single Phase
Power Consumption*194.4 W (Access)
82.56 W (HDD Hibernation)
British Thermal Unit663.48 BTU/hr (Access)
281.77 BTU/hr (HDD Hibernation)
Redundant Power Supply
NotesPower consumption is measured when it is fully loaded with Synology HAS5300-8T hard drive(s).
Temperature
Operating Temperature0°C to 35°C (32°F to 95°F)
Storage Temperature-20°C to 60°C (-5°F to 140°F)
Operating Humidity8% to 80% RH
Storage Humidity5% to 95% RH
Others
System Fan80 mm x 80 mm x 4 pcs
Easy Replacement System Fan
Noise Level*54.5 dB(A)
NotesNoise Level Testing Environment: Fully loaded with Synology SAT5200-480G SSD in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Certification
  • FCC
  • CE
  • BSMI
  • UKCA
  • EAC
  • VCCI
  • RCM
  • KC
  • BIS
Warranty
5 Years
NotesThe warranty period starts from the purchase date as stated on your purchase receipt.
Environment & Packaging
Environment
RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Expansion Cable: Mini-SAS HD X 2
  • Quick Installation Guide X 1
Optional Accessories
  • Enterprise Series 3.5″ SAS HDD: HAT5300 Series
  • Enterprise Series 3.5″ SATA HDD: HAT5300 Series
  • Enterprise Series 2.5″ SATA SSD: SAT5200 Series

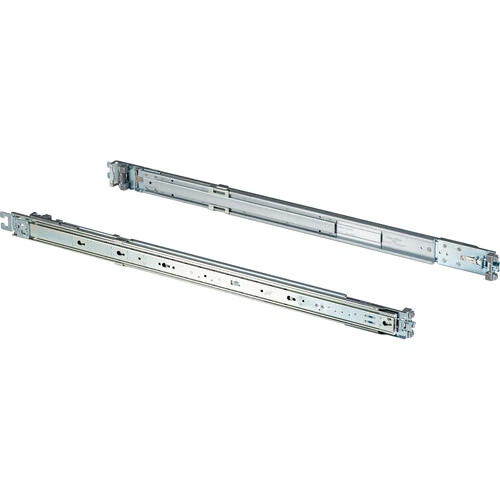

  • Rail Kit Sliding: RKS-02
