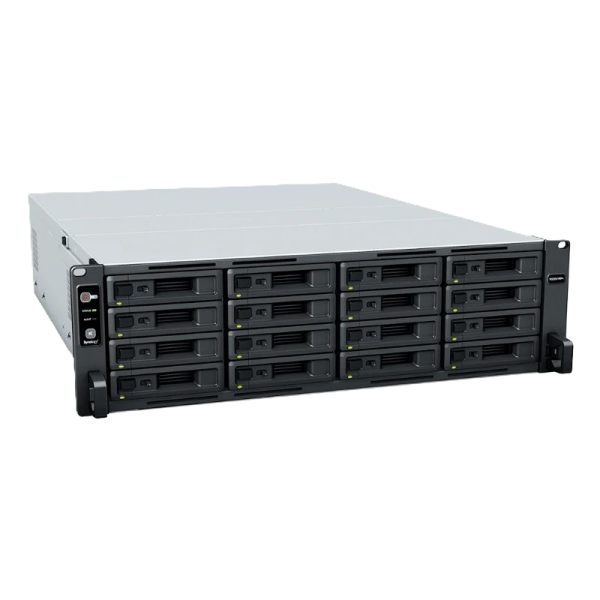

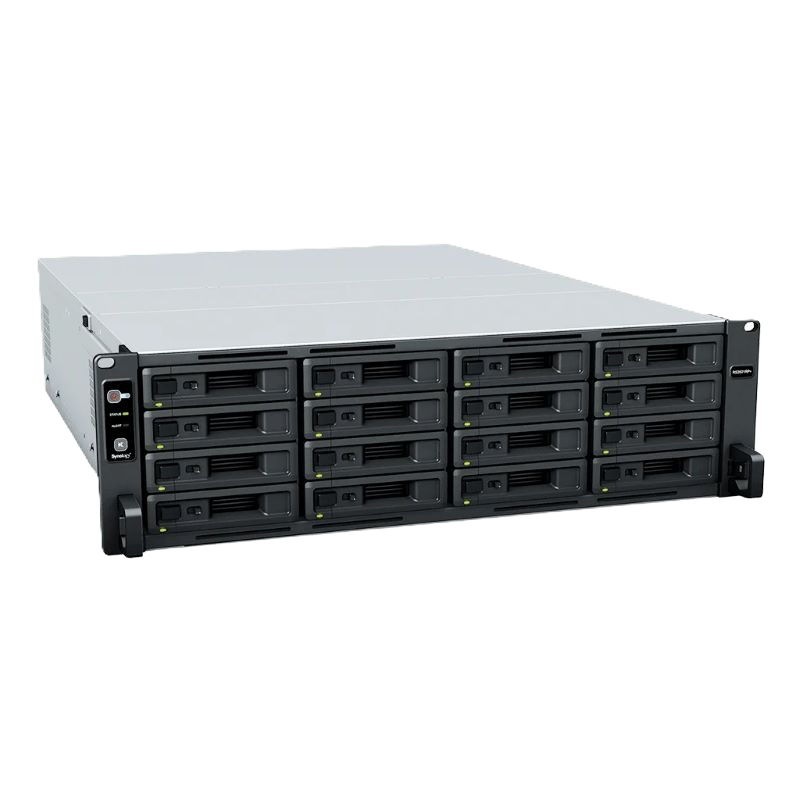

Synology Rackmount 2821RP+ AMD Ryzen V1500B 4GB 3U 16 bays

Image Safe Checkout
Guaranteed Safe Checkout
  • Free worldwide shipping on all orders over $100
  • Delivers in: 3-7 Working Days Shipping & Return
Categories: ,

RS2821RP+

Specifications
CPU
 CPU Model AMD Ryzen V1500B
CPU Quantity 1
CPU Core 4
CPU Architecture 64-bit
CPU Frequency 2.2 GHz
Hardware Encryption Engine
Memory
 System Memory 4 GB DDR4 ECC UDIMM
Memory Module Pre-installed 4 GB (4 GB x 1)
Total Memory Slots 2
Maximum Memory Capacity 32 GB (16 GB x 2)
Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For multi-module memory configurations, all modules must be identical and share the same model number.
Storage
 Drive Bays 16
Maximum Drive Bays with Expansion Unit 28 (RX1217 x 1)
Drive Type
  • 3.5″ SATA HDD
  • 2.5″ SATA HDD
  • 2.5″ SATA SSD
Hot Swappable Drive*
Notes Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
External Ports
 RJ-45 1GbE LAN Port 4
USB 3.2 Gen 1 Port 2
Expansion Port 1
Expansion Port Type Infiniband
PCIe
 PCIe Expansion 1 x Gen3 x8 slot (x4 link)
Appearance
 Form Factor (RU) 3U
Size (Height x Width x Depth) 132.3 mm x 482 mm x 656.5 mm
Weight 17.1 kg
Rack Installation Support* 4-post 19″ rack (Synology Rail Kit – RKS-02)
Notes The rail kit is sold separately
Others
 System Fan 80 mm x 80 mm x 3 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level* 53.5 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 550 watts
Redundant Power Supply
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 97.54 watts (Access)
49.57 watts (HDD Hibernation)
British Thermal Unit 332.61 BTU/hr (Access)
169.03 BTU/hr (HDD Hibernation)
Notes
  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
 Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Operating Humidity 8% to 80% RH
Storage Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • EAC
  • CCC
  • KC
  • UL
Warranty
 3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus.
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt.
Environment
 RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
Notes All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
