Description

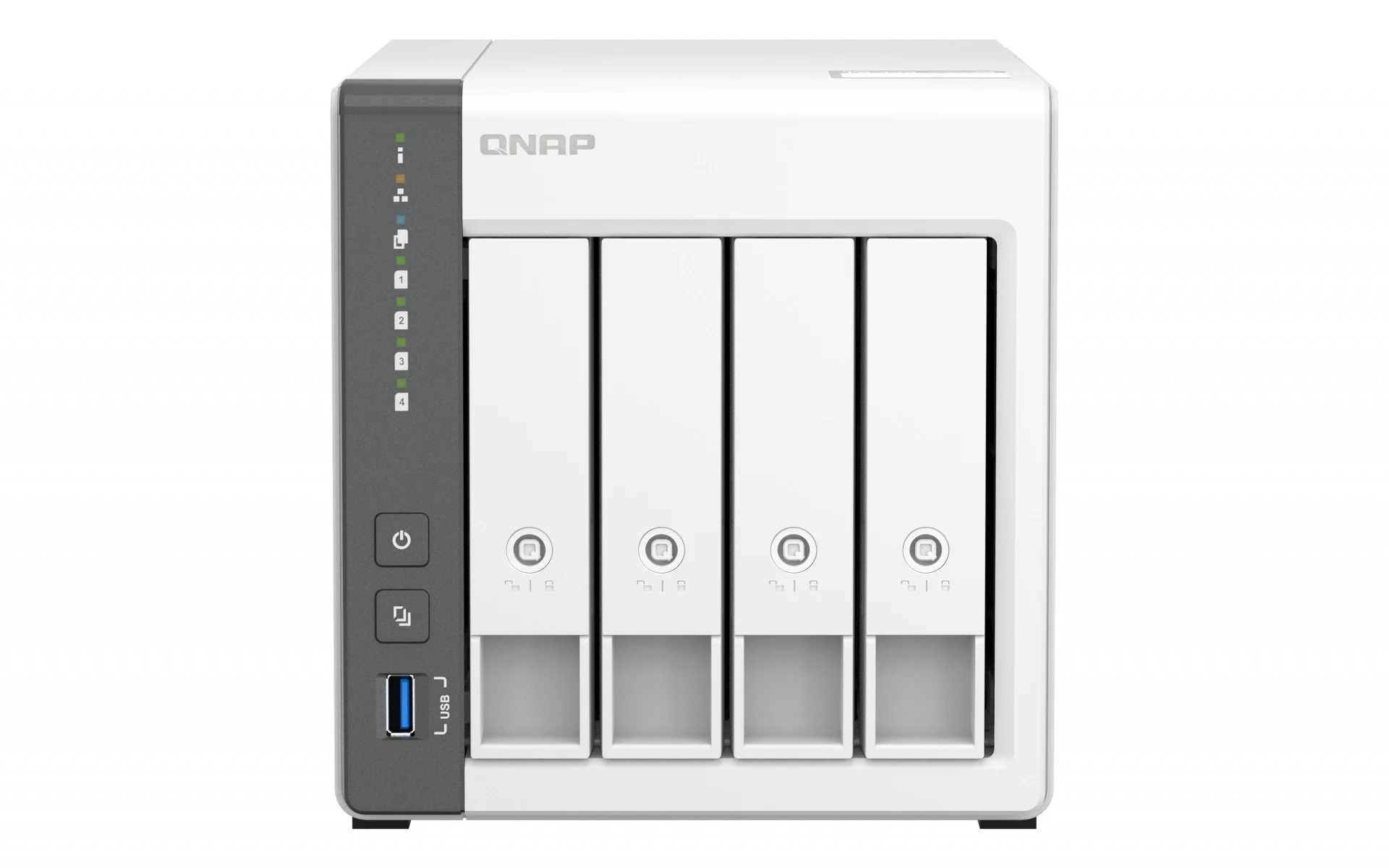

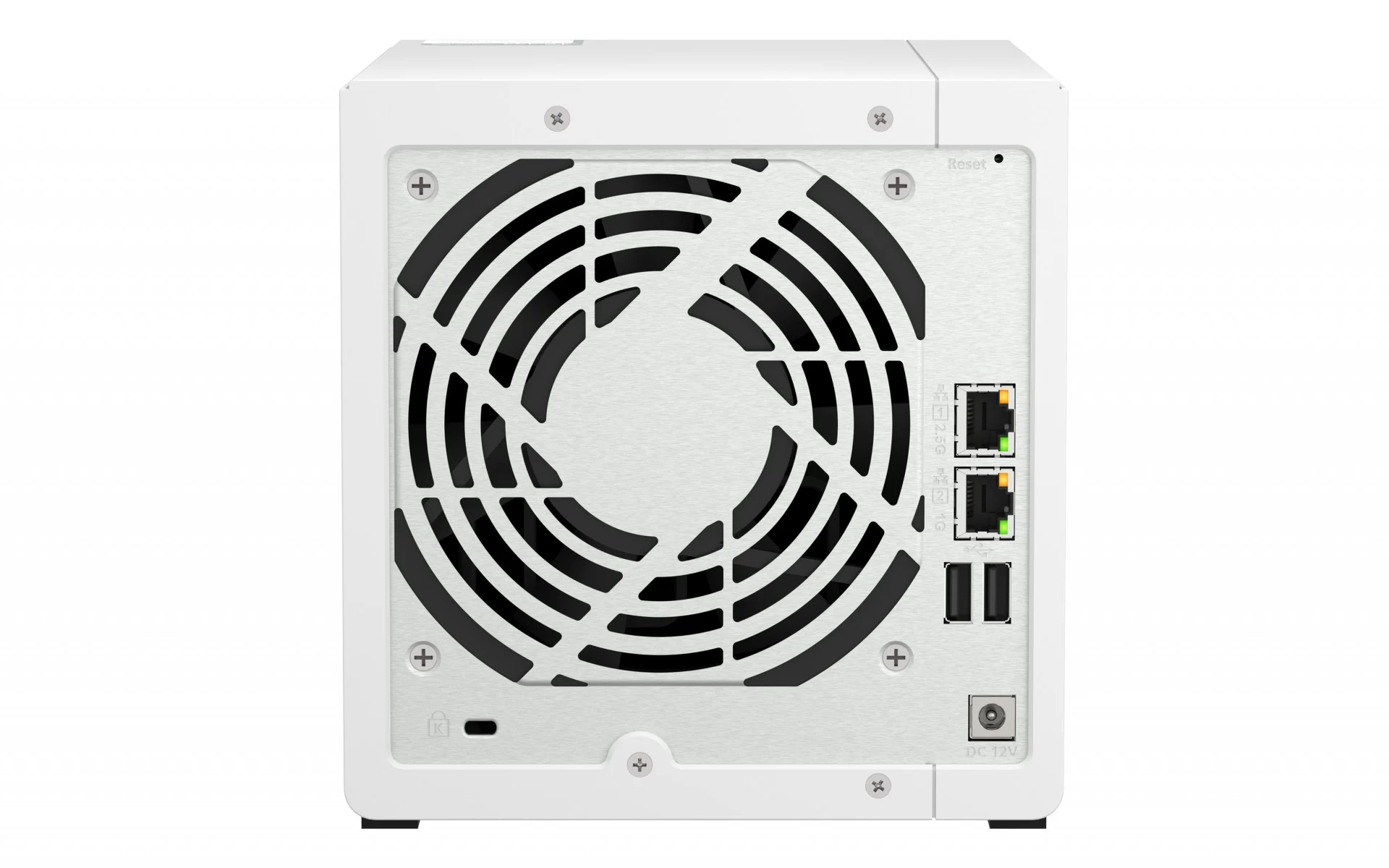

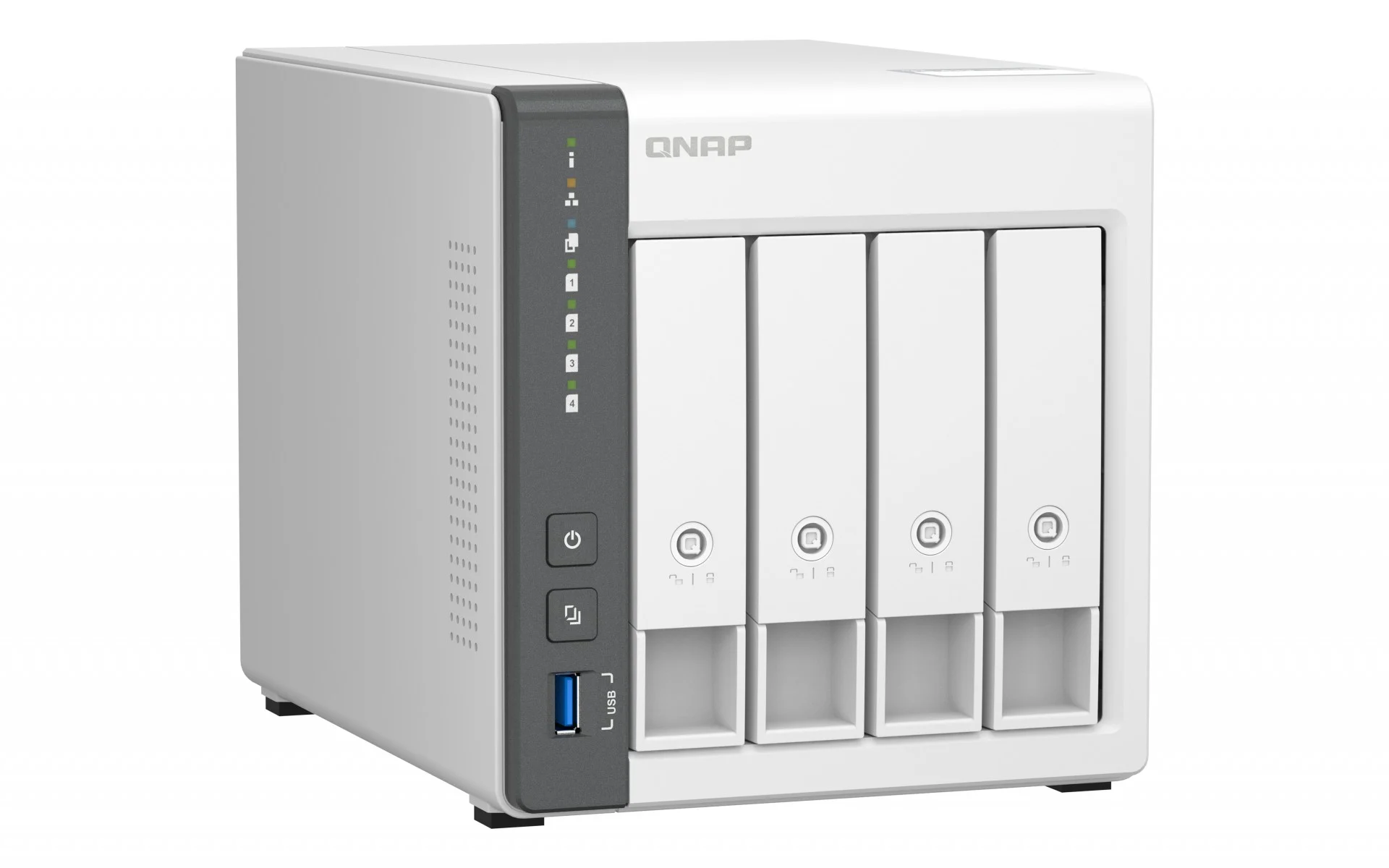

QNAP TS-433 NAS Tower Ethernet LAN Cortex-A55

QNAP TS-433. Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA, Storage drive sizes supported: 2.5,3.5″. Processor family: ARM, Processor model: Cortex-A55, Processor frequency: 2 GHz. Internal memory: 4 GB, Maximum RAM supported: 4 GB, Flash memory: 4000 MB. Ethernet LAN data rates: 100,1000,2500 Mbit/s. Chassis type: Tower, Cooling type: Active, Number of fans: 1 fan(s)

Specifications

Storage

Supported storage drive interfaces

Serial ATA

Storage drive sizes supported

2.5,3.5″

RAID support

Yes

RAID levels

0, 1, 5, 6, 10, JBOD

Online RAID migration

Yes

Online RAID expansion

Yes

RAID rebuild

Yes

Hot-swap drive bays

Yes

Supported file systems

FAT32, HFS+, NTFS, exFAT, ext3, ext4

Storage drives installed

No

Number of storage drives supported

4

Installed storage drive type

No

Supported storage drive types

HDD & SSD

Disk roaming

Yes

Processor

Processor family

ARM

Processor model

Cortex-A55

Processor frequency

2 GHz

Processor cores

4

Memory

Maximum RAM supported

4 GB

Internal memory

4 GB

Flash memory

4000 MB

Network

Ethernet LAN

Yes

Ethernet LAN data rates

100,1000,2500 Mbit/s

DHCP server

Yes

Jumbo frames support

Yes

iSCSI support

Yes

Wake-on-LAN ready

Yes

Dynamic DNS (DDNS)

Yes

Ports & interfaces

USB port

Yes

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Ethernet LAN (RJ-45) ports

2

Concurrent connections

200

Design

Chassis type

Tower

Cooling type

Active

Number of fans

1 fan(s)

Fan diameter

12 cm

Drive bay locking

Yes

LED indicators

Power, Reset, USB

Cable lock slot

Yes

Cable lock slot type

Kensington

Performance

Type

NAS

Device class

Home & Home Office

Backup function

Yes

Backup features

Cloud, iSCSI LUN

Buzzer

Yes

Multilingual support

Yes

Snapshot

Yes

Management protocols

SNMP V2/V3

Hot spare

Yes

Password authentication

Yes

System log

Yes

S.M.A.R.T. support

Yes

Disk scan

Yes

Access Control List (ACL)

Yes

Security algorithms

256-bit AES, FIPS 140-2, HTTPS, SSH

Reset button

Yes

On/off switch

Yes

Built-in FTP server

Yes

Browser supported

Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox

Software

Operating system installed

QNAP QTS

Operating system version

5.0.1

Windows operating systems supported

Windows 10, Windows 11, Windows 7, Windows 8

Linux operating systems supported

Yes

Mac operating systems supported

Yes

Server operating systems supported

Windows Server 2008, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Power

Power supply location

External

Power supply unit (PSU) capacity

90 W

Power consumption (typical)

22.54 W

Power consumption (sleep)

8.45 W

AC input voltage

100 – 240 V

Fan voltage

12 V

Weight & dimensions

Width

160 mm

Depth

219 mm

Height

169 mm

Weight

2.07 kg

Package weight

3.5 kg

Packaging content

External power adapter

Yes

Cables included

AC, LAN (RJ-45)

Power cables quantity

1

Number of screws

28

Drive tray key included

Yes

Operational conditions

Operating temperature (T-T)

0 – 40 °C

Operating relative humidity (H-H)

5 – 95%

Storage temperature (T-T)

-20 – 70 °C
