FS6400

FS6400

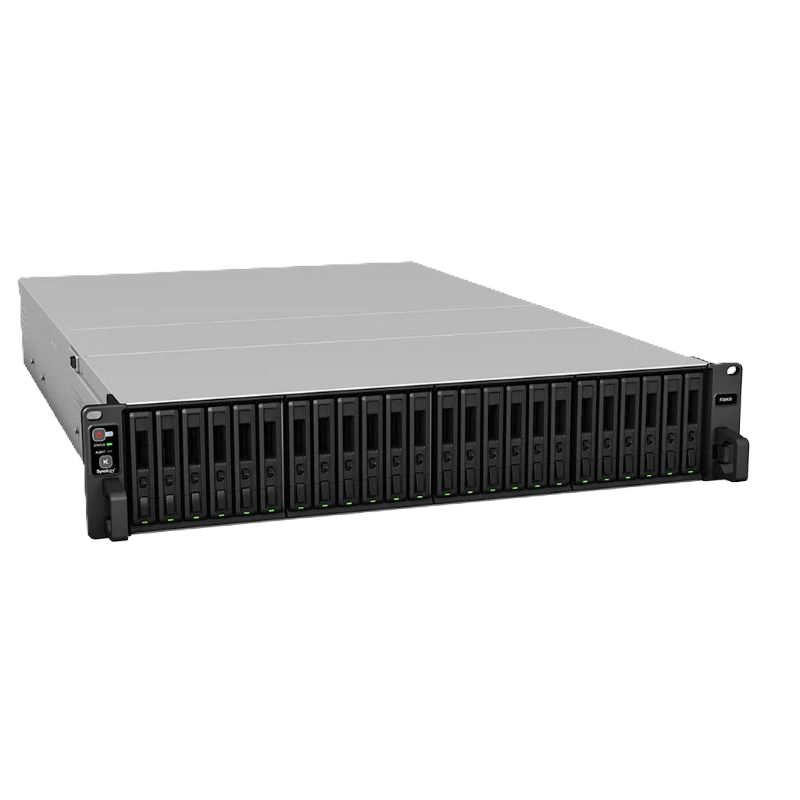

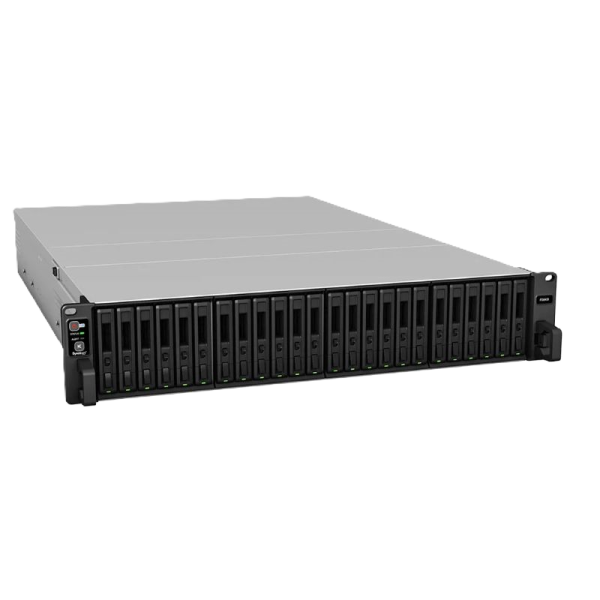

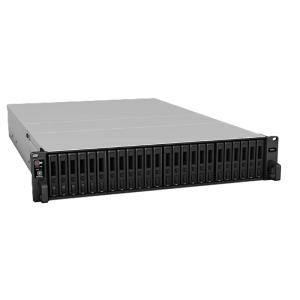

Synology Flash station 6400 Intel Xeon Silver 4110 32GB 2U 24 bays

Categories: 24bay Flash station, Synology

Add to wishlist

Description
Reviews (0)
Q & A

Description

FS6400

Hardware Specifications
CPU	CPU Model	Intel Xeon Silver 4110
	CPU Quantity	2
	CPU Core	8
	CPU Architecture	64-bit
	CPU Frequency	2.1 (base) / 3.0 (turbo) GHz
	Hardware Encryption Engine
Memory	System Memory	32 GB DDR4 ECC RDIMM
	Memory Module Pre-installed	32 GB (16 GB x 2)
	Total Memory Slots	16
	Maximum Memory Capacity	512 GB (32 GB x 16)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage	Drive Bays	24
	Maximum Drive Bays with Expansion Unit	72 (FX2421 x 2)
	Drive Type	2.5″ SAS HDD 2.5″ SAS SSD 2.5″ SATA SSD
	Hot Swappable Drive*
External Ports	RJ-45 1GbE LAN Port	2
	RJ-45 10GbE LAN Port	2
	USB 3.2 Gen 1 Port	2
	Expansion Port	1
	Expansion Port Type	Mini-SAS HD
PCIe	PCIe Expansion	2 x Gen3 x8 slots (x8 link)
Appearance	Form Factor (RU)	2U
	Size (Height x Width x Depth)	88 mm x 482 mm x 724 mm
	Weight	17.26 kg
	Rack Installation Support*	4-post 19″ rack (Synology Rail Kit – RKS-02)
	Notes	The rail kit is sold separately
Others	System Fan	80 mm x 80 mm x 4 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan
	Power Recovery
	Noise Level*	53.7 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	800 watts
	Redundant Power Supply
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption*	288.49 watts (Access) 145.8 watts (HDD Hibernation)
	British Thermal Unit	984.37 BTU/hr (Access) 497.49 BTU/hr (HDD Hibernation)
	Notes	Noise Level Testing Environment: Fully loaded with Toshiba 600GB AL14SEB060N hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% Power consumption is measured when it is fully loaded with HGST 1.8TB HUC101818CS4204 hard drive(s).
Temperature	Operating Temperature	0°C to 35°C (32°F to 95°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Operating Humidity	8% to 80% RH
	Storage Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC BIS
Warranty	5 Years
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt.
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1
Optional Accessories	DDR4 ECC RDIMM: D4RD-2666-16G Expansion Units: FX2421*/RX1222sas Enterprise Series 2.5″ SATA SSD: SAT5200 Series 25GbE Network Interface Card: E25G30-F2 10GbE Network Interface Card: E10G30-F2/E10G30-T2/E10G18-T1 Rail Kit Sliding: RKS-02
	Notes	For multi-module memory configurations, all modules must be identical and share the same model number. Expansion Unit FX2421 can only be used with identical expansion units.
