Description

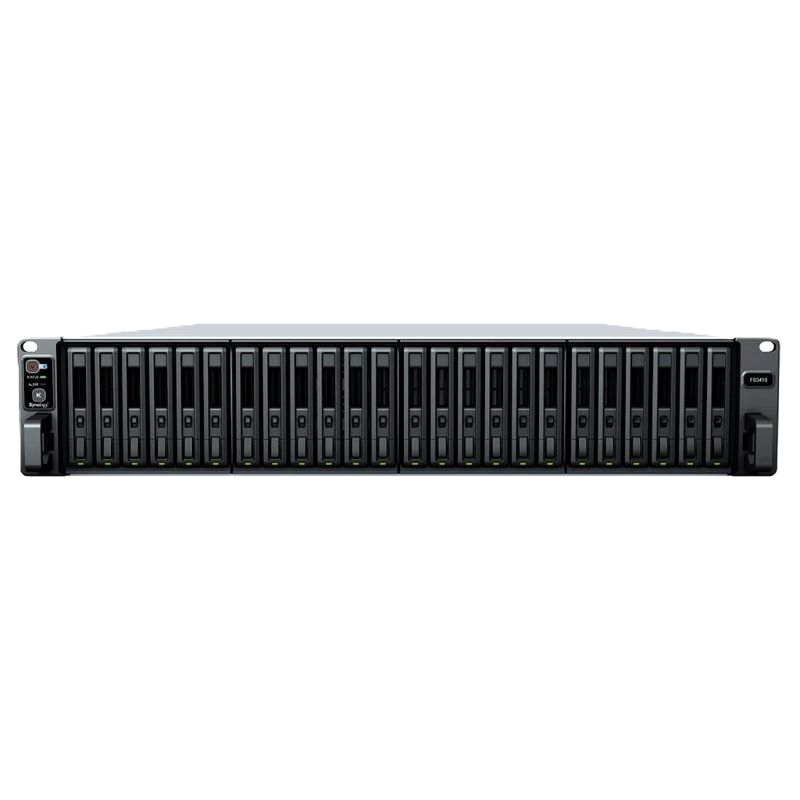

FS3410
Hardware Specifications | ||
|---|---|---|
CPU | CPU Model | Intel Xeon D-1541 |
| CPU Quantity | 1 | |
| CPU Core | 8 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2.1 (base) / 2.7 (turbo) GHz | |
| Hardware Encryption Engine | ||
Memory | System Memory | 16 GB DDR4 ECC RDIMM |
| Memory Module Pre-installed | 16 GB (16 GB x 1) | |
| Total Memory Slots | 4 | |
| Maximum Memory Capacity | 128 GB (32 GB x 4) | |
| Notes |
| |
Storage | Drive Bays | 24 |
| Drive Type | 2.5″ SATA SSD | |
| Hot Swappable Drive* | ||
| Notes | Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability. | |
External Ports | RJ-45 1GbE LAN Port | 4 |
| RJ-45 10GbE LAN Port | 2 | |
| Out-of-Band Management LAN Port | 1 | |
| Max. Number of LAN Ports | 15 | |
| USB 3.2 Gen 1 Port | 2 | |
| Notes | This device’s 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. | |
PCIe | PCIe Expansion | 2 x Gen3 x8 slots (x8 link) |
Appearance | Form Factor (RU) | 2U |
| Size (Height x Width x Depth) | 88 mm x 482 mm x 724 mm | |
| Weight | 15.0 kg | |
| Rack Installation Support* | 4-post 19″ rack (Synology Rail Kit – RKS-02) | |
| Notes | The rail kit is sold separately | |
Others | System Fan | 80 mm x 80 mm x 4 pcs |
| Fan Speed Mode |
| |
| Easy Replacement System Fan | ||
| Power Recovery | ||
| Noise Level* | 46.1 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 550 watts | |
| Redundant Power Supply | ||
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption* | 113.84 watts (Access) | |
| British Thermal Unit | 388.70 BTU/hr (Access) | |
| Notes |
| |
Temperature | Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Operating Humidity | 8% to 80% RH | |
| Storage Humidity | 5% to 95% RH | |
Certification |
| |
Warranty | 5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. | |
Environment | RoHS Compliant | |
Packaging Content |
| |
Optional Accessories |
| |
| Notes | For multi-module memory configurations, all modules must be identical and share the same model number. | |
