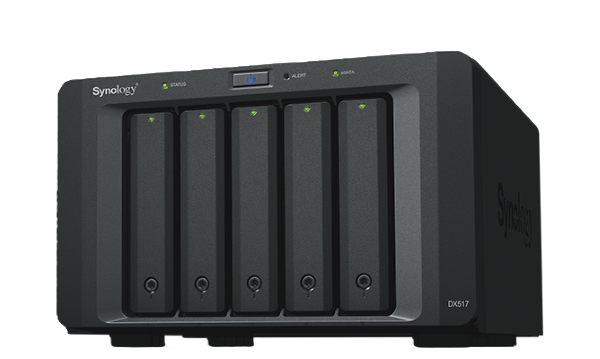

DX517
|
Hardware Specifications
|
||
|---|---|---|
|
Applied Models
|
Supports creating volumes across different units |
|
| Supports creating volumes on a single unit only |
|
|
| Notes |
|
|
|
Storage
|
Drive Bays | 5 |
| Drive Type |
|
|
| Hot Swappable Drive* | ||
| RAID Management through Synology DSM | ||
| Notes | Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability. | |
|
External Ports
|
eSATA Port | 1 |
|
Appearance
|
Size (Height x Width x Depth) | 157 mm x 248 mm x 233 mm |
| Weight | 3.91 kg | |
|
Power
|
Power Recovery | Synchronized with the Synology DiskStation |
| Power Supply Unit / Adapter | 200 W | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption* | 29.9 W (Access) 2.4 W (HDD Hibernation) |
|
| British Thermal Unit | 102.02 BTU/hr (Access) 8.19 BTU/hr (HDD Hibernation) |
|
| Notes | Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). | |
|
Temperature
|
Operating Temperature | 5°C to 40°C (40°F to 104°F) |
| Storage Temperature | -10°C to 70°C (15°F to 155°F) | |
| Operating humidity | 8% to 80% RH | |
| Storage Humidity | 5% to 95% RH | |
|
Others
|
System Fan | 80 mm x 80 mm x 2 pcs |
| Easy Replacement System Fan | ||
| Noise Level* | 21.5 dB(A) | |
| Notes | Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% | |
|
Certification
|
|
|
|
Warranty
|
3-year hardware warranty, extendable to 5 years with Extended Warranty Plus | |
| Notes |
|
|
|
Environment & Packaging
|
||
|
Environment
|
RoHS Compliant | |
|
Packaging Content
|
|
|
|
Optional Accessories
|
|
|
