DVA1622

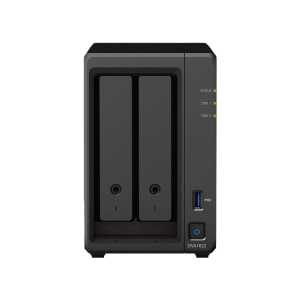

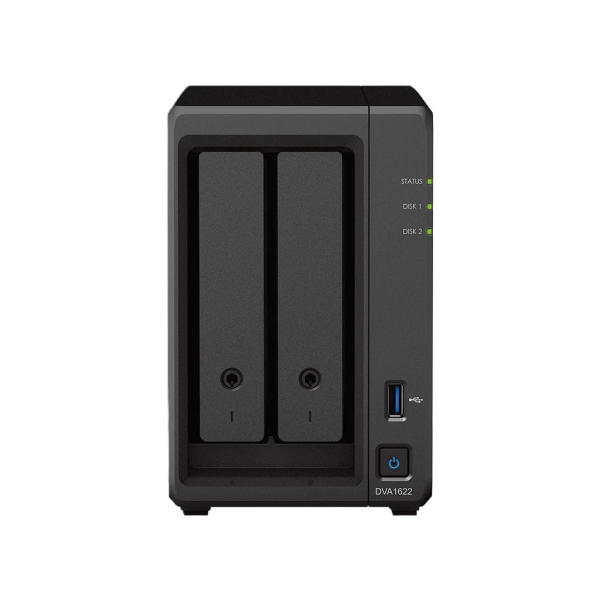

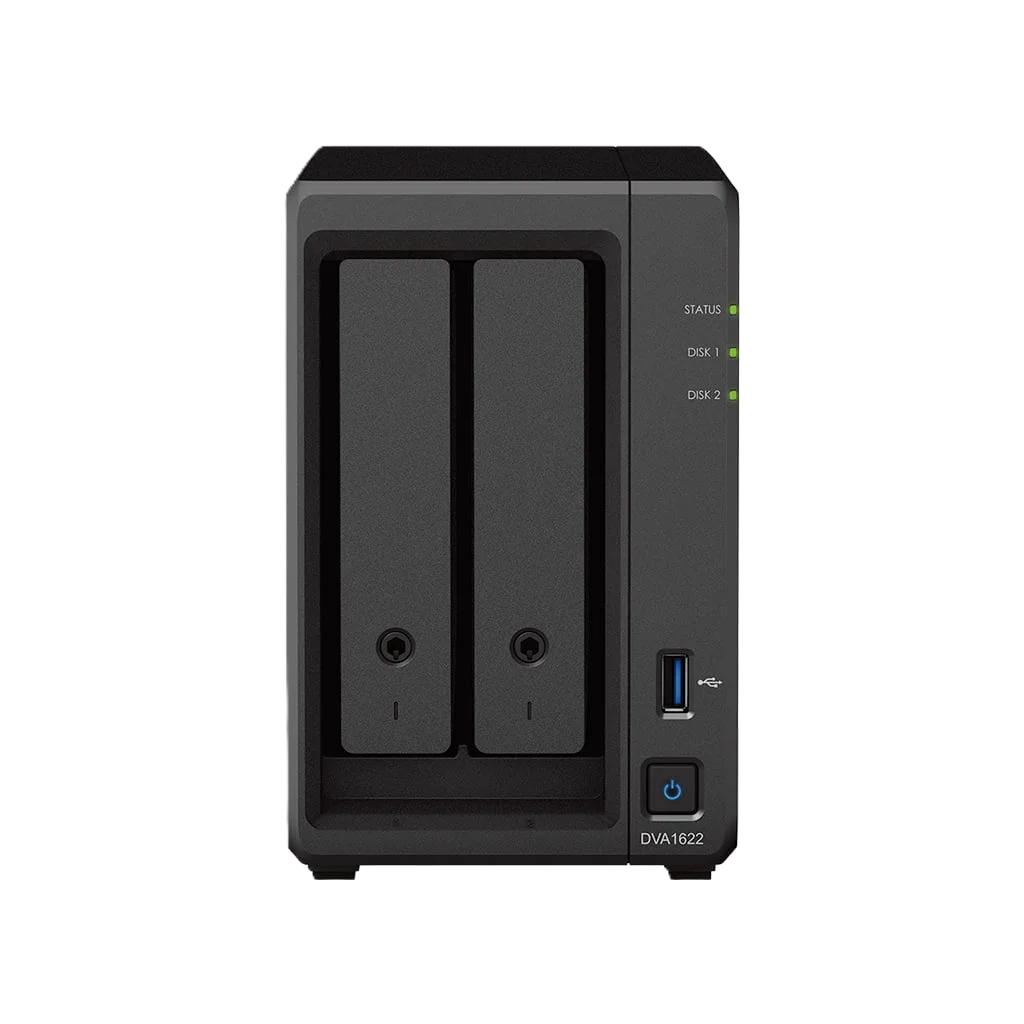

Synology DVA 1622 Desktop 2 bays, surveillance solution with AI-powered video analytic capability

Categories: ,

Description

DVA1622

Models
CPU
CPU ModelIntel Celeron J4125
CPU Architecture64-bit
CPU FrequencyQuad Core 2.0 (base) / 2.7 (burst) GHz
Hardware Encryption Engine (AES-NI)
Video Outputs
Video OutputsHDMI X 1
Supported Video Resolution1080p 60Hz
Memory
System Memory6 GB DDR4 non-ECC
Memory Module Pre-installed6 GB (2 GB + 4 GB)
NotesSynology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage
Drive Bays2
Compatible Drive Type
  • 3.5″ SATA HDD
  • 2.5″ SATA SSD
Hot Swappable Drive*
Notes“Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
RJ-45 1GbE LAN Port1
USB 3.0 Port2
Appearance
Size (Height x Width x Depth)166 mm x 106 mm x 223 mm
Weight1.51 kg
Others
Wake on LAN / WAN
System Fan92 mm x 92 mm x 1 pcs
Fan Speed Mode
  • Cool Mode
  • Quiet Mode
  • Full-Speed Mode
Power Recovery
Noise Level*18.4 dB(A)
Scheduled Power On / Off
Power Supply Unit / Adapter60 W
AC Input Power Voltage100 V to 240 V AC
Power Frequency50/60 Hz, Single Phase
Power Consumption19.93 W (Access)
4.02 W (HDD Hibernation)
British Thermal Unit67.96 BTU/hr (Access)
13.71 BTU/hr (HDD Hibernation)
Notes
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Operating Temperature0°C to 40°C (32°F to 104°F)
Storage Temperature-20°C to 60°C (-5°F to 140°F)
Relative Humidity5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • KC
Warranty
3-year hardware warranty, extendable to 5 years with EW201 OR Extended Warranty Plus
Notes
  • Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions.
  • The warranty period starts from the purchase date as stated on your purchase receipt.
Environment
RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 1
  • Quick Installation Guide X 1
Optional Accessories
  • Enterprise Series 3.5″ SATA HDD: HAT5300 Series
  • Surveillance Device License Pack
